CREATING PHYSICAL PANELS IN 3D IS A BREEZE WITH E3.PANEL

Design your panels without the need of complex 3D MCAD systems with a tool specifically designed to create electrical panels

electrical-panel-design-software--E3-Panel--integrated-with-E3-schematics-and-E3-cable100% Integrated with E3.schematics and E3.cable

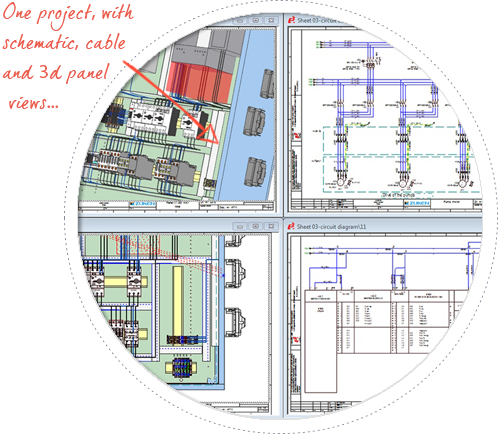

Any changes you make in panel or schematic are reflected across all views automatically

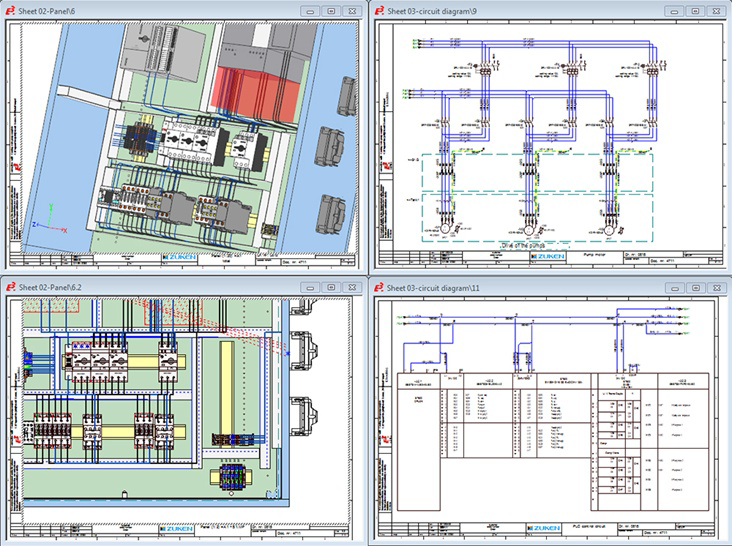

Navigate easily between schematic and 3D views of the panel to see how any change affects other aspects of your design.

electrical-panel-design-software--E3-Panel--design-rule-check

Design Rule Check

Create 100% error-free designs with a tool that gives you immediate feedback

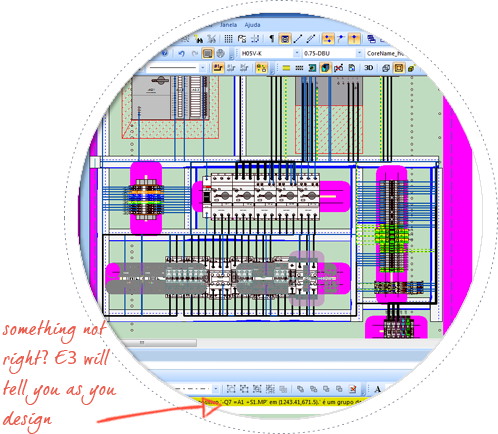

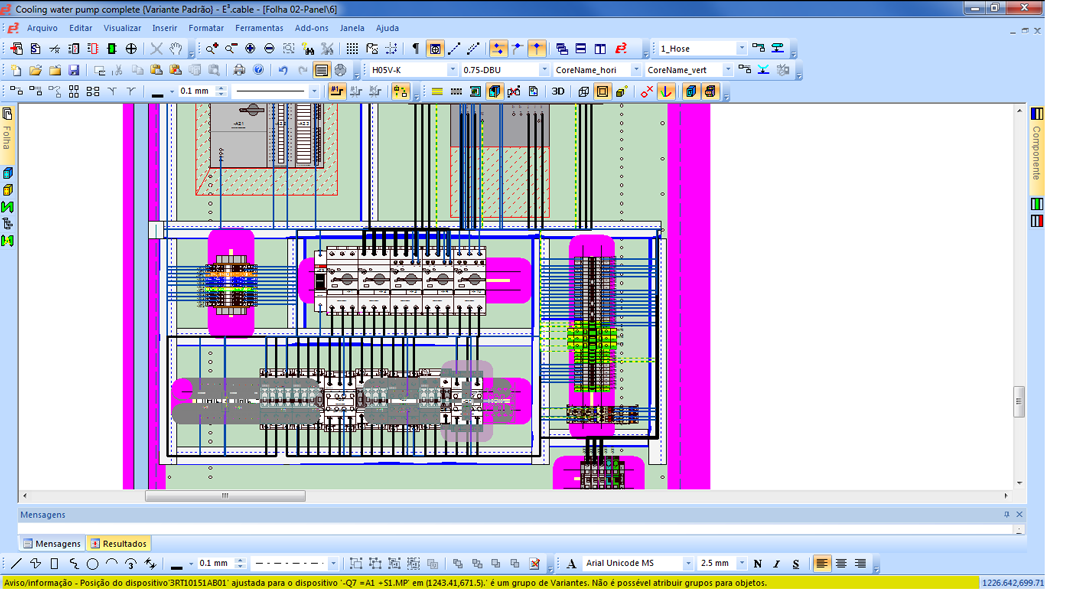

In addition to the design rule checks built into the design process with E3.panel, the tool has features that will make your design 100% error- free, including:

  • Hazard avoidance
  • Collision detection
  • Automatic snap on to valid mounting positions
  • Placement errors prevention

electrical-panel-design-software--E3-Panel--single-click-2D-view

Create all the additional 2D views you need

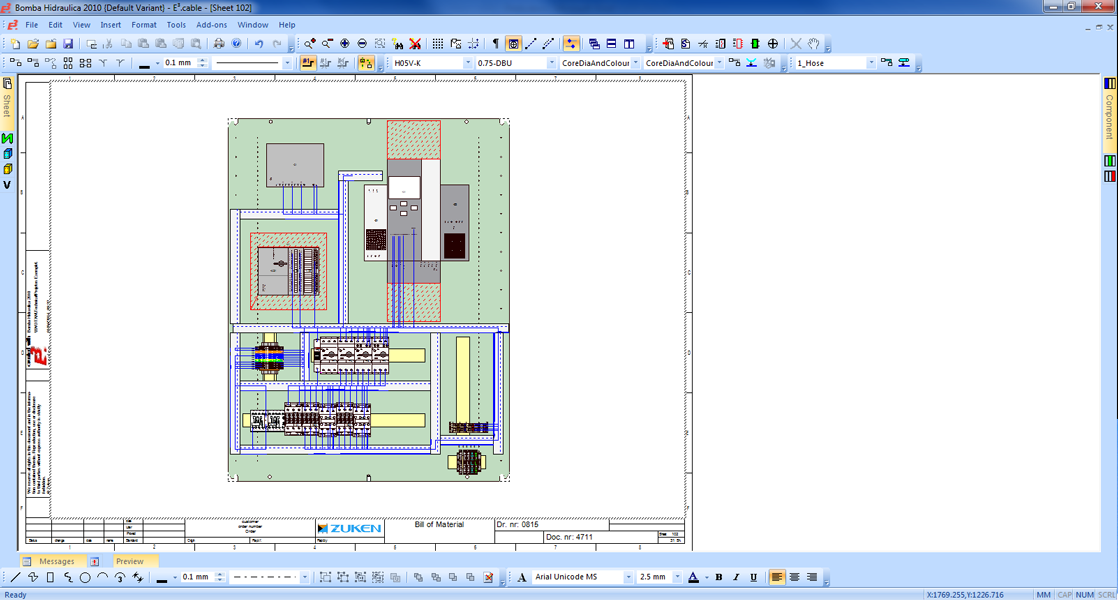

Single-click 2D view creation

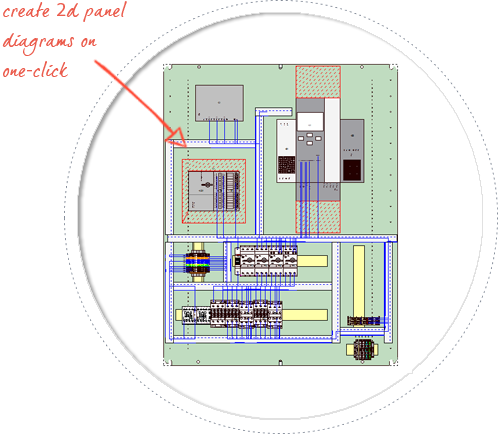

Just selecting the plan view you need and your 2D view will be created automatically.

Electrical Panel Pesign Software, testimonial-profile1

“One of the E3 benefits are the documentation reports automatically generated. These reports allow us to prepare all panel wires without having the panel ready; so it brings us qualified information, such as cable numbering, length, color, and others that allow us working with a single productive cable cell.”

Jean Carlos de Souza
Supervisor de Engenharia na AFAP

With E3.Panel Plus You Can Also...

E3.panel+ is an add-on to E3.panel

electrical-panel-design-software--E3-Panel--wire-your-panel-automaticallyWire your panel automatically

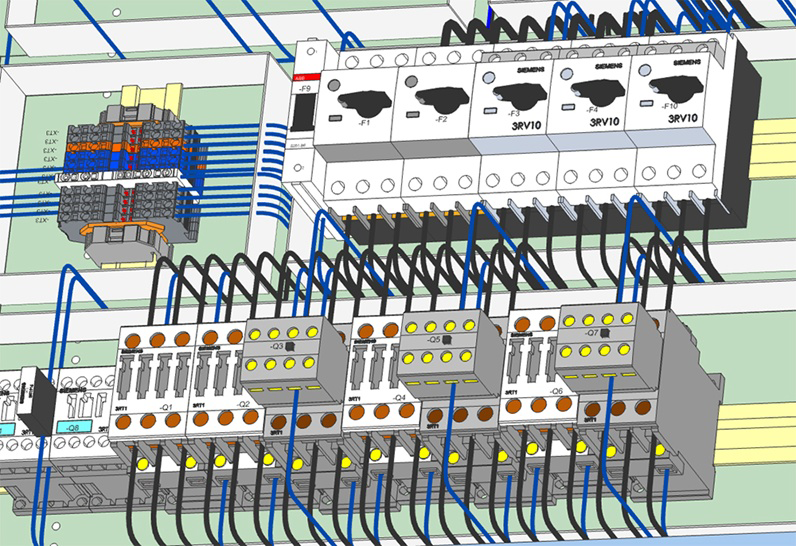

Wire your components in your panel in the most efficient way with E3.panel Plus - Shortest path algorithm

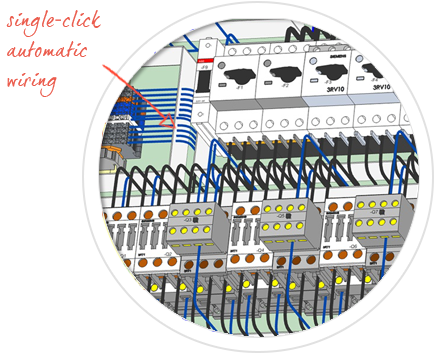

Do all the wiring of your panel in a single click. E3.panel Plus will make sure that everything is wired correctly. Plus does all the checking for you:
  • Built-in cable duct fill size check - so you make sure you aren’t putting too many cables in a duct.
  • Generate all the wiring documentation automatically; E3.panel Plus can generate a cable list spreadsheet that shows you wire routes and the individual cable lengths needed.

electrical-panel-design-software--E3-Panel--integrate-with-manufacturing-equipmentIntegrate your panel design with manufacturing equipment

Prepare your panel for manufacturing

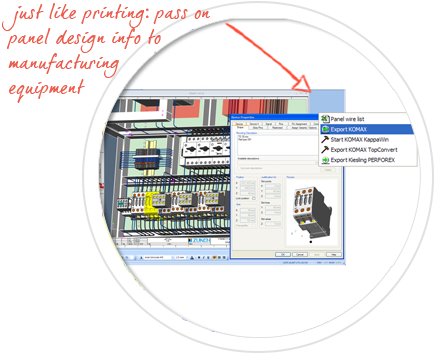

Get all the information you need to create your physical panel. E3.panel Plus integrates with various manufacturing equipment such as Komax wire preparation machinery and Perforex drilling, punching and cutting tools.

GET THE E3.PANEL VERSION THAT FITS YOUR NEEDS

professional
STANDARD EDITION

Integrated schematic and panel design

2D and 3D design

Automatic snapping placement

Design rule check
