Catch Errors at the Development Stage and Avoid Cost-Intensive Iterations with E3.eCheck

If you are working with DC control systems, E3.eCheck extension can automatically ensure the schematic is functionally accurate and that wires and fuses are within the acceptable tolerances.

electrical-wiring-design-software-E3-echeck

shadow-normal-2

Design for manufacture

E3.eCheck complements E3.series with its electrically-aware component library and numerous design rule checks.

Tolerance Checks

Test and detect specific fuses or cables that will fail if the current surpasess specified tolerances or safety levels, so you can detect errors long before they reach manufacturing.

Circuit Analysis

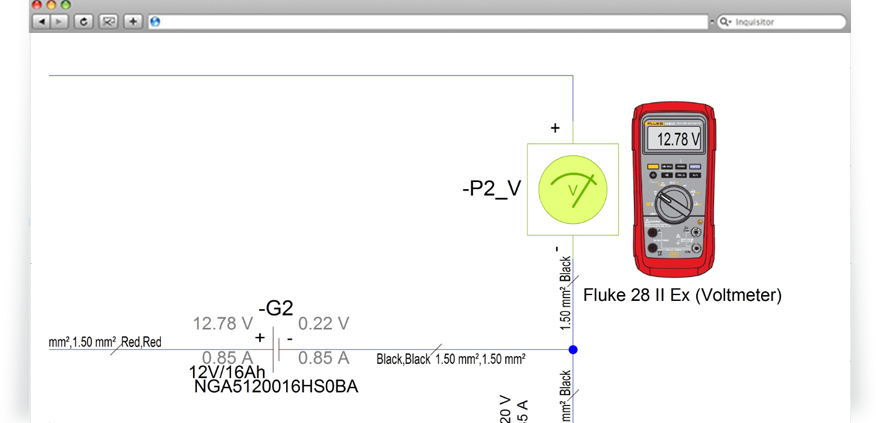

Simulate voltage and current passing through your circuits and get immediate success or failure information.

SUPPORTED INDUSTRIES

All transportation industry, and any engineer working with DC control systems



RELATED PRODUCTS

All E3.series modules
